Sony
Types of cameras
CCU and Camcorders

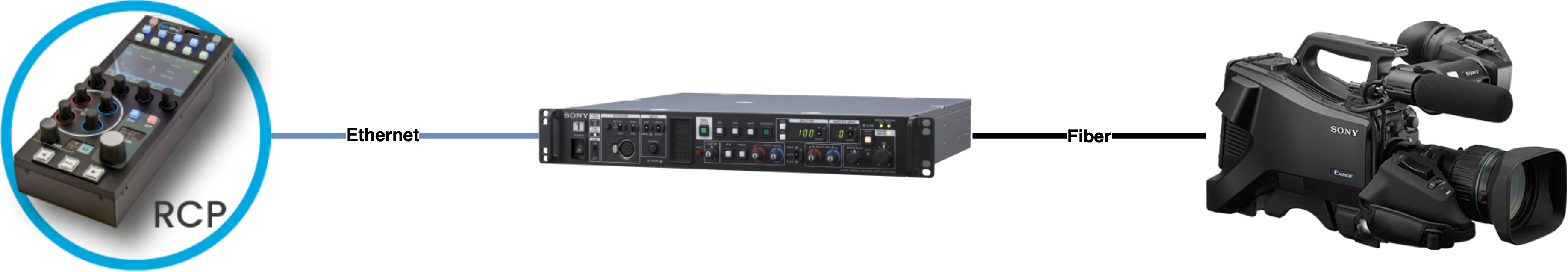

If your camera has a RJ45 port, we can control is over IP. Pay attention that we only support bridge mode, not MSU.
![](/img/Integrations/Sony/Sony-CCU-IP-wiring.png)

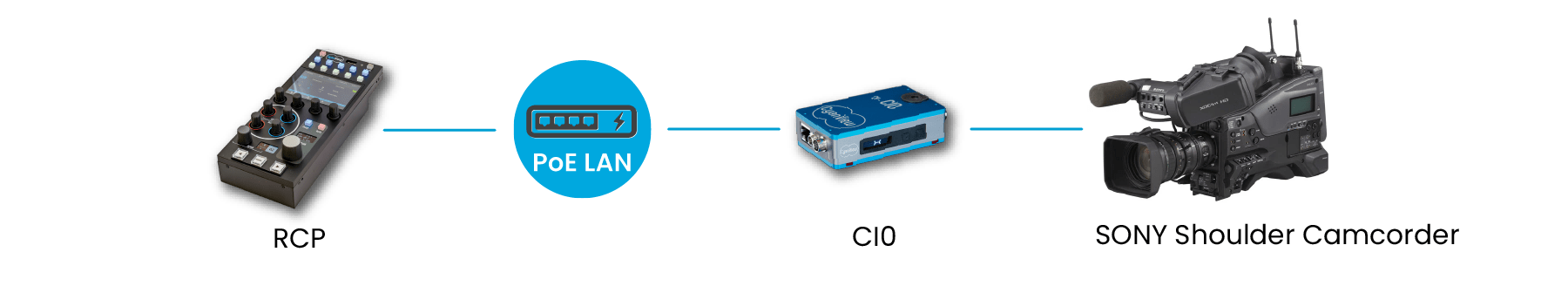

The other option is using the 8P port which offer the same controls, but requires a CI0/RIO.
![](/img/Integrations/camera/Sony/Sony-PMW/SONY-PMW-XXX-RCP-CI0@2x-8.png)
info
Typical use case:
- You want a simple and compact solution to shade all your Sony CCU.
- Remote production
PTZ
![](/img/Integrations/Sony/SonyFR7-wiring-simple.png)
info
Typical use case: you already have a PTZ panel and are looking for a RCP for shading your all your PTZ's.

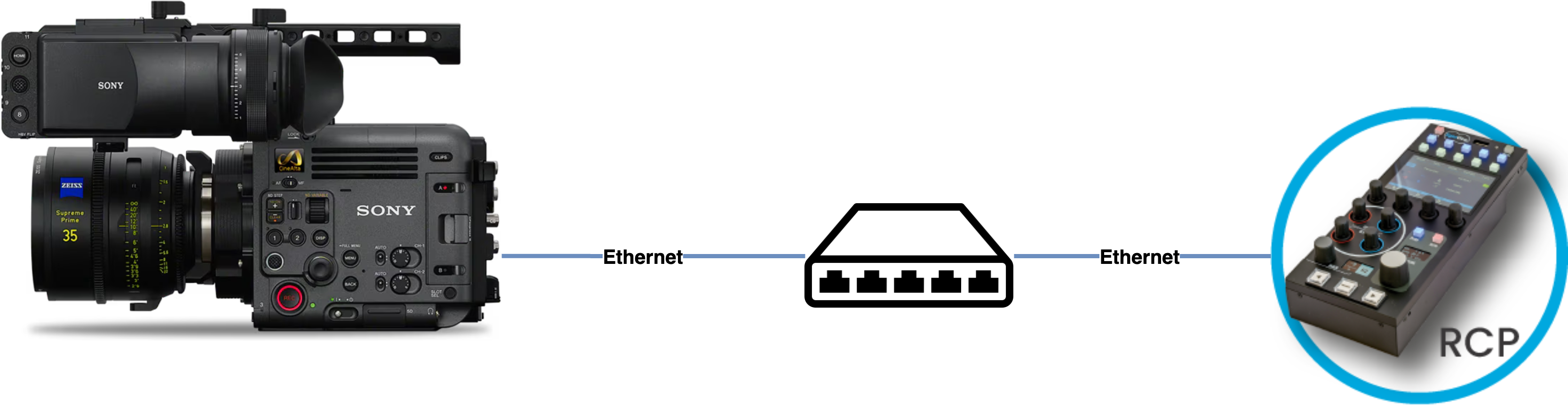

Cinema cameras
![](/img/Integrations/Sony/Sony-Burano/Burano-wiring.png)
- Sony FX3/FX30 (and other mirrorless like A7S, A1, etc.) : controlled over USB
- Sony FX6 : controlled over IP
- Sony FX9 : controlled over IP
- Sony Burano : controlled over IP
- Sony Venice : controlled over 8 Pin remote connector (requires a CI0/RIO)
- Sony FR7 : controlled over IP
If you're using Sony E-mount lenses, nothing else to add.
If you're looking for Fujinon or Canon motorized lenses, we can control:
- The camera
- The lens in parallel
If your lens is not motorized, you can add:

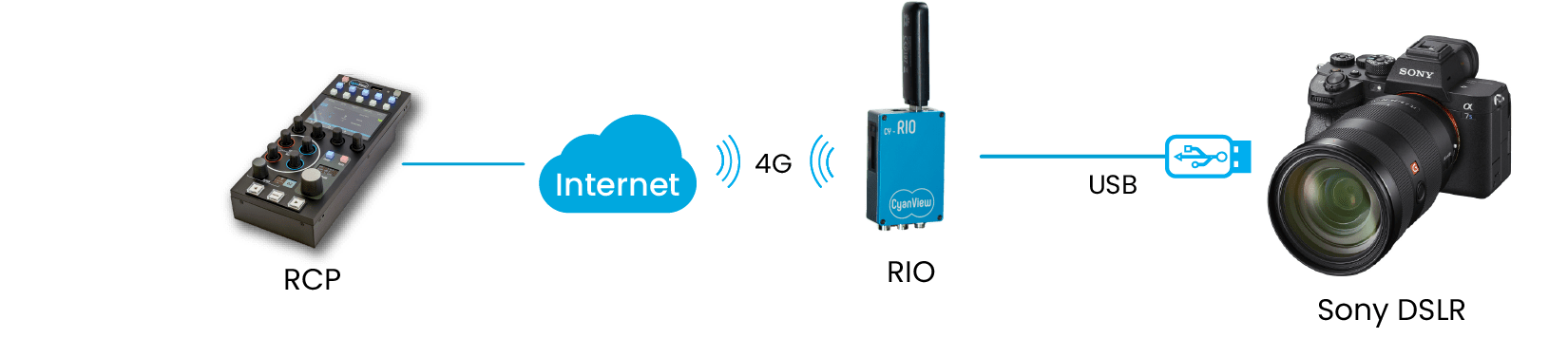

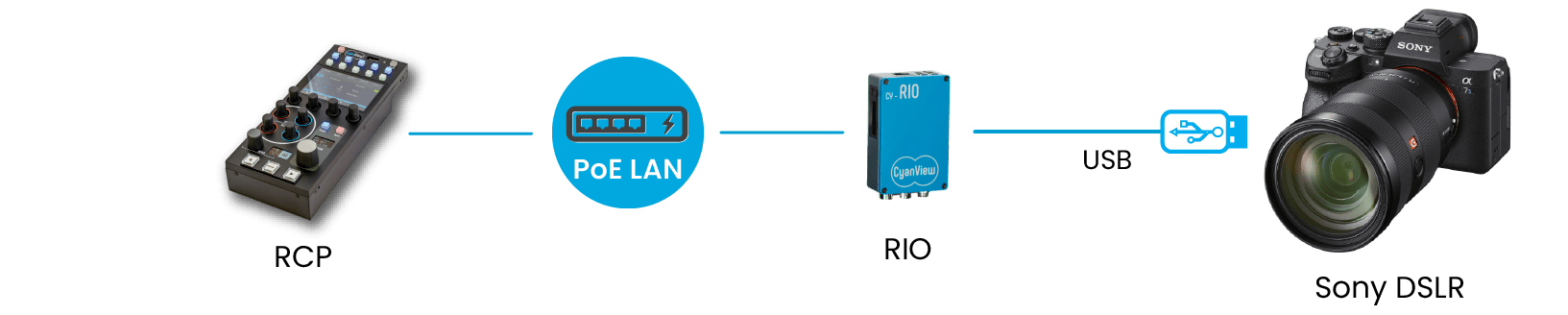

Sony Alpha's
![](/img/Integrations/camera/Sony/Sony-DSLR/SONY-DSLR-RIO-RCP-Local@2x-8.png)
![](/img/Integrations/camera/Sony/Sony-DSLR/SONY-DSLR-RIO-4G@2x-8.png)
- Sony Alpha : controlled over USB, or IP using RIO/RIO-live
info
Typical use case: gimbal as light steadicam

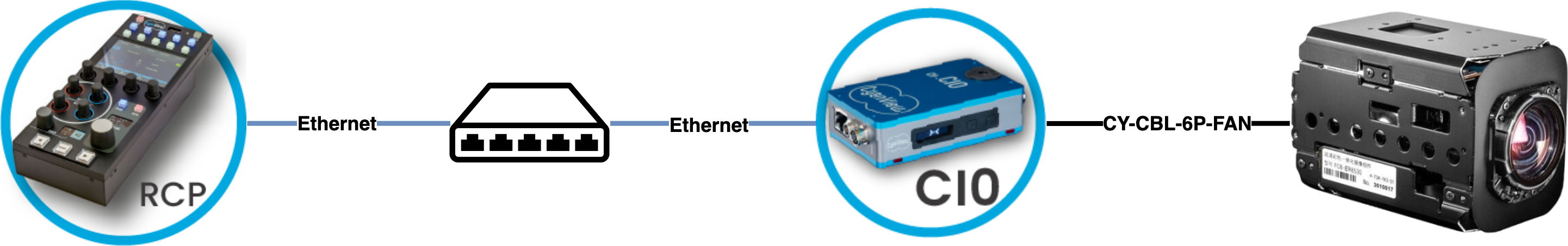

Camera block
![](/img/Integrations/Sony/Sony-FCB/Sony-FCB-wiring.png)
- PXX : controlled over 8 Pin remote connector (requires a CI0/RIO)
- FCBXX : controlled over serial connector (requires a CI0/RIO)
