MoJoPro

Overview​

The Haivision MoJoPro mobile application for Apple and Android enables live video transmission from smartphones.

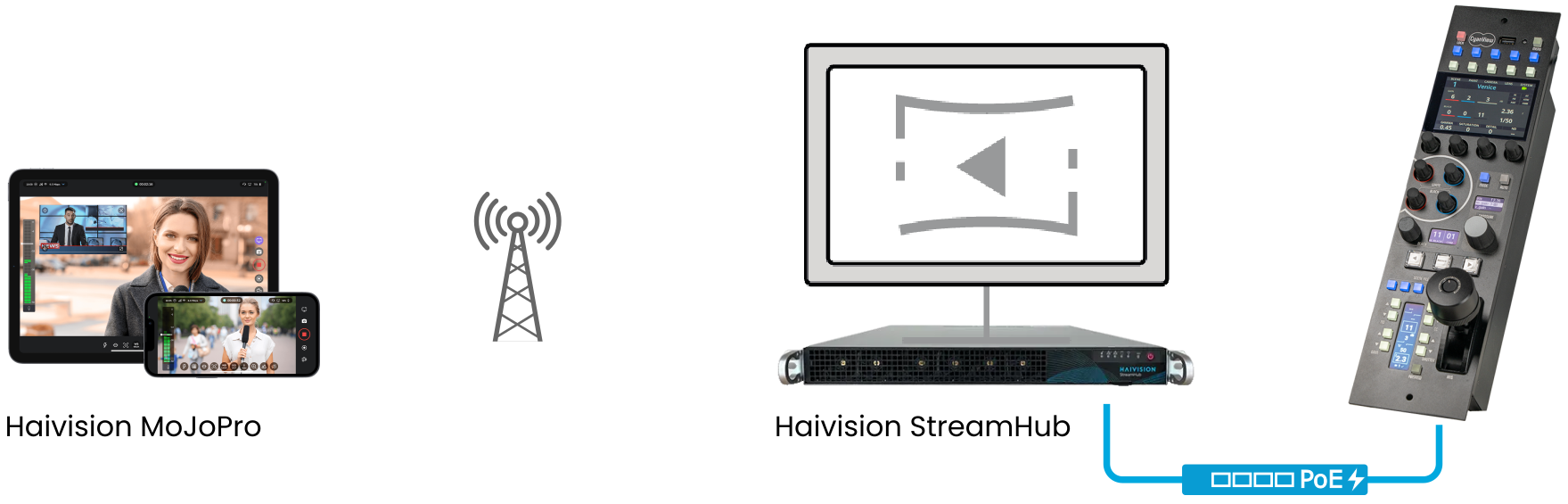

The Cyanview RCP can control a range of parameters over the Streamhub connection. This functionality is ideal for news gathering or unattended PoV camera workflows, allowing operators to adjust settings remotely.

Haivision MoJoPro

Supported Control​

FunctionNotes
GainManual (ISO) and AUTO
ExposureManual or AUTO shutter
White balanceVariable color temperature in K
FocusManual and AUTO focus
Zoom

Configuration​

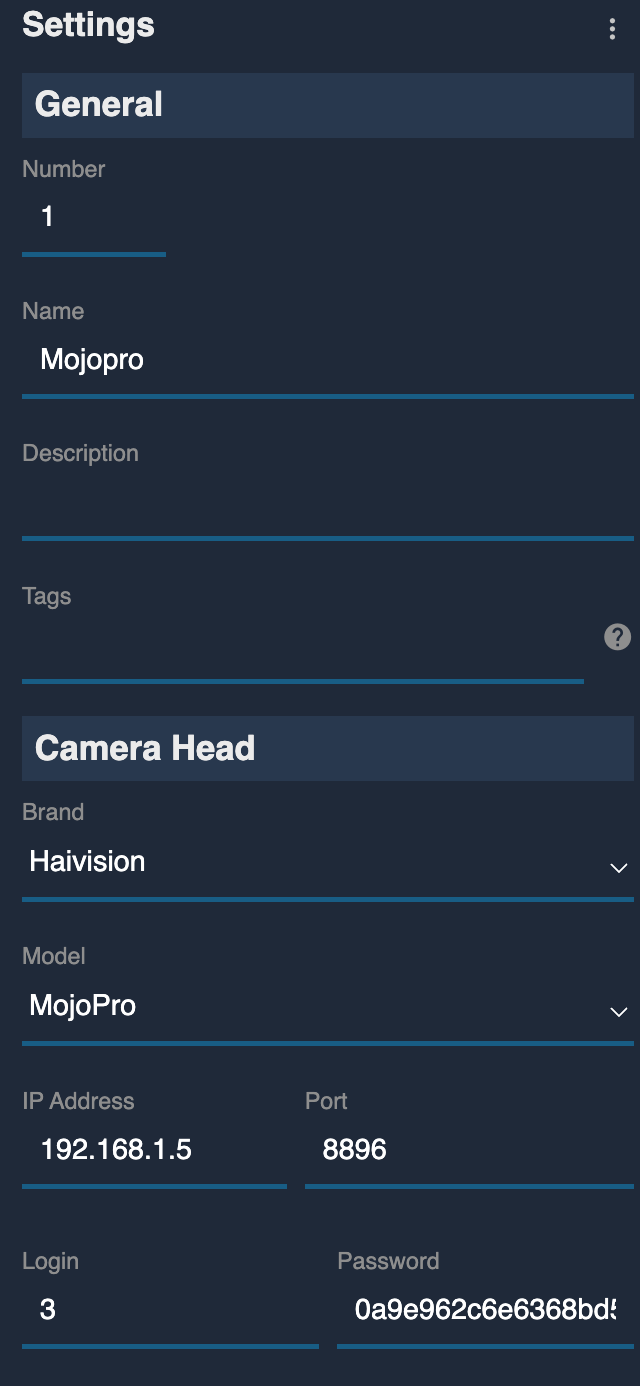

Haivision MoJoPro Camera
  • When adding a camera, select the model Haivision - MoJoPro.
  • Enter the IP address of the StreamHub (not the phone) in the IP Address field. Make sure the RCP is assigned an IP address within the same network range as the StreamHub.
  • In the Port field, enter 8896. This is the REST API port used by the StreamHub.
  • Set the input number of the StreamHub to which the MoJoPro is connected (1 to 16) inthe MoJoPro app the Login field
  • Enter the api_key from StreamHub into the Password field in MoJoPro. You can find the API key in the StreamHub web interface by navigating to Admin > Rest API doc (look in the top right corner). For detailed instructions, see the StreamHub User Guide.
