RED Komodo|Raptor

Wiring

Controls

FunctionNotes
LensIris, Focus, Zoom
ExposureIris, Shutter, Gain/ISO, Auto Exposure
White balanceAuto (ATW), One Push, Manual
Primary correctionsMaster Black, Master Gamma, Color Gains, Pedestal, Saturation
OtherTally (red)

RCP overview

Main view

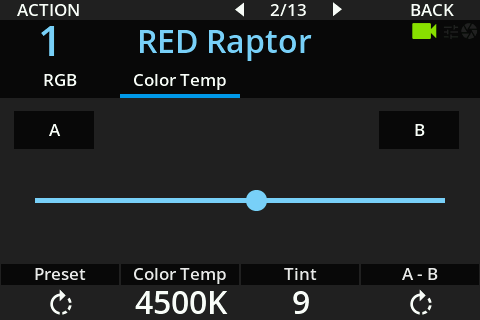

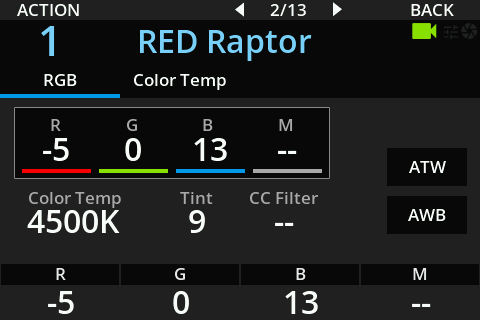

White balance

Path : MENU > PAINT > WHITE

note

You can click on the first row to control R/G/B using encoders. And clicking on the second row will switch to color temp and tint.

note

You can control:

  • Presets : navigate through a list of presets color temp (2800K, 3200K, 3800K, 4500K, 5600K, 7000K, 9000K)
  • Color Temp : variable color temp to select any value based on the camera steps
  • Tint
  • Action (menu) : set A and B boundaries (minimum/maximum) for the color temp
  • A/B : direct access to A and B boundaries
  • Slider : Move variable color temp between A and B boundaries
  • A-B encoder : Move variable color temp between A and B boundaries

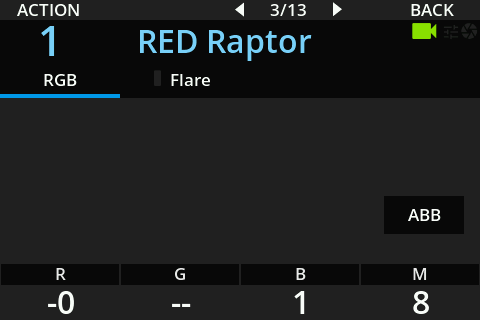

Black balance

Path : MENU > PAINT > BLACK

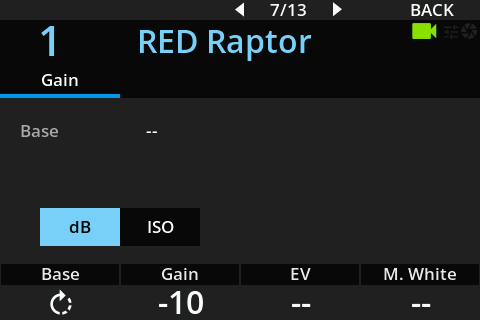

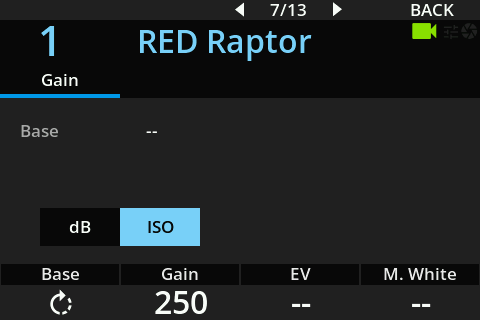

ISO/dB

Path : MENU > PAINT > Gain


Matrix

Path : MENU > PAINT > Matrix

You can change the presets:

And You can enable/disable it with ON/OFF button

Gamma

Path : MENU > PAINT > Gamma

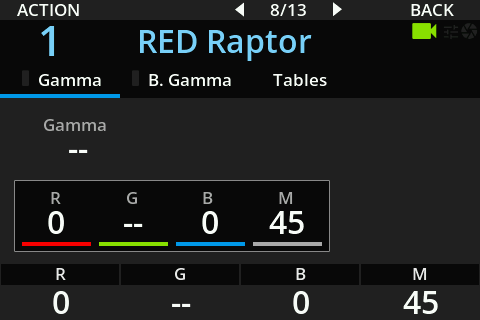

In Gamma, you can change the R/B/M gamma:

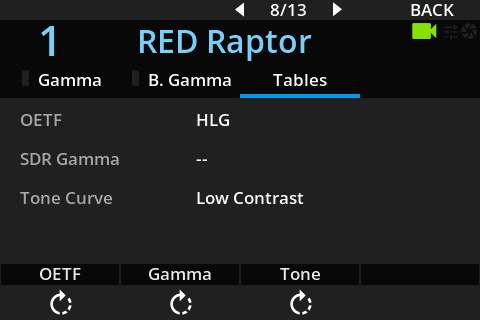

In Tables, you can change OETF:

And the Tone Curve:

note

This list will be updated based on the Color Space selected in the camera.

Check on the RCP : MENU > PAINT > Matrix > Preset (Here I was in Rec709)

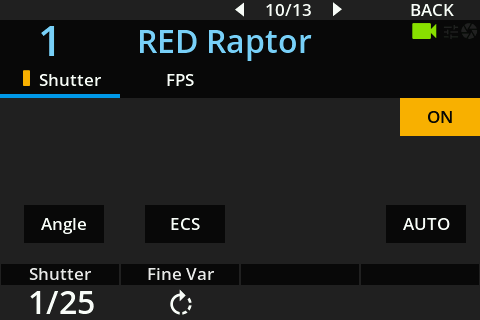

Shutter

Path : MENU > PAINT > SHUTTER

You can change:

  • Shutter on/off
  • Shutter in speed or angle
  • ECS

White clip

Path : MENU > PAINT > KNEE

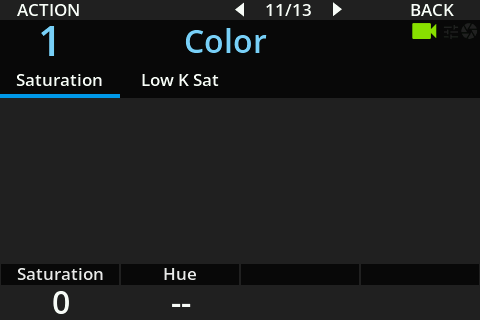

Saturation

Path : MENU > PAINT > COLOR

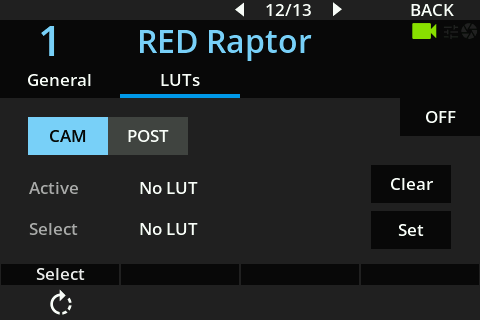

LUT

Path : MENU > PAINT > LOOK

note

You can upload LUTs on the RCP, see here. And you can then navigate through the LUT list.

Clear will set the LUT to None in the camera.

Set will upload the selected LUT to the camera.

ON/OFF will toggle it.

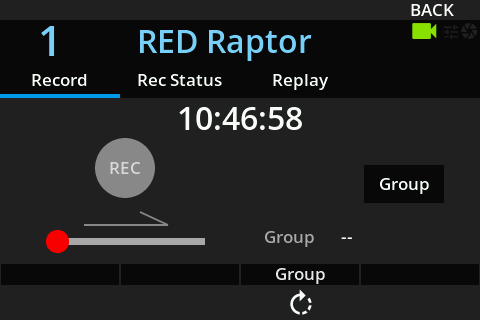

REC / TC

Path : MENU > RECORD

You can see the TC from the camera and trig the REC from the RCP.

note

You can select a group and toggle the group using the Group button.

This will allow you to trig the REC on all the camera within the selected group.

This only applies to camera configured/imported on the RCP. So usuallly people put a RCP with all the cams (unlimited/broadcast version) and use it as a MSU and for this REC control.

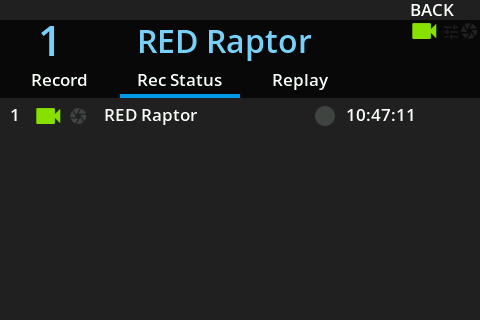

You can then see in the next tab a list of all:

  • the cameras
  • their TC
  • their REC status

Setup RCP/RIO

  • Connect camera and your RCP/RIO on the same network
  • Enter a custom number, name, etc.
  • Add the Camera to the RCP configuration via the RCP Configuration UI.
    • Select Red brand.
    • Select Komodo or V-Raptor model.
    • Enter the IP of your camera
note

If your camera is in a different range than your RIO/RCP. Follow this guide

This should looks like this:

And once correctly connected, it should be green:
