Panasonic P2 serial control
Supported Models
- AG-HPX300
- AG-HPX500
- AJ-HPX2700
- AJ-HPX3100
- Generic : this model assumes all features are available so this can be used with any other camera. Some features may not be available or may not function as expected depending on what is supported by the specific camera model.
note
All AJ-HPX cameras with the Hirose 10p connector are supported. Simply select Generic model. Depending on the model (if not specificaly listed), some features may not be available or not working properly.
Supported Control
| Control | AG-HPX300 | AG-HPX500 | AJ-HPX2700 | AJ-HPX3100 | Generic |
|---|---|---|---|---|---|
| OSD | ✔ | ✔ | ✔ | ✔ | ✔ |
| Gain (M / R / B) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Pedestal (M / R / B) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Gamma (M / R / B) | ✔ | ✔ | ✔ | ||
| Black gamma | ✔ | ✔ | ✔ | ||
| Saturation | ✔ | ✔ | ✔ | ||
| Whiteclip | ✔ | ✔ | ✔ | ||
| Knee | ✔ | ✔ | ✔ | ||
| Matrix | ✔ | ✔ | ✔ | ||
| Detail | ✔ | ✔ | ✔ | ||
| ND filters | RO | ✔ | |||
| AWB | ✔ | ✔ | ✔ | ✔ | ✔ |
| Iris | ✔ | ✔ | ✔ | ✔ | ✔ |
| Shutter | ✔ | ✔ | ✔ | ✔ | ✔ |

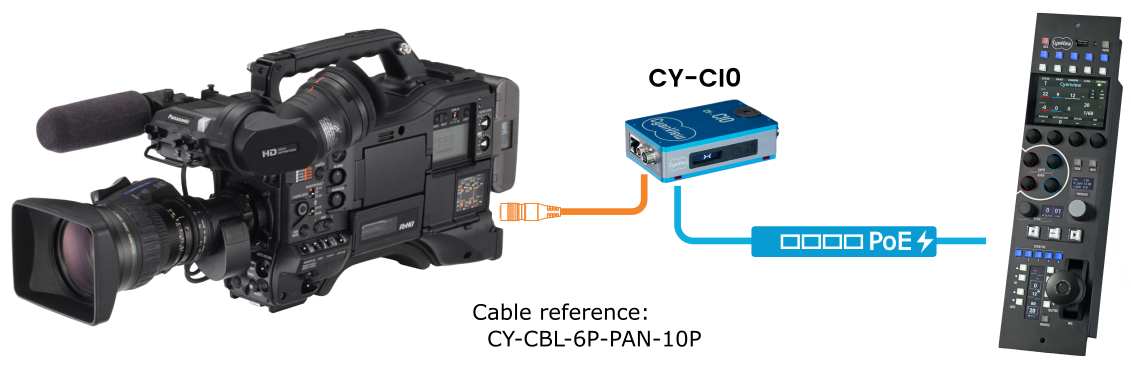

Connection
The camera is controlled over a serial link and requires a CY-CIO or CY-RIO interface.
The appropriate cable is CY-CBL-6P-PAN-10P.
Setup
Add a camera on your RCP or RIO:
- Select Panasonic brand
- Select Serial model
- Select your CI0 or RIO port to which the camera is plugged
