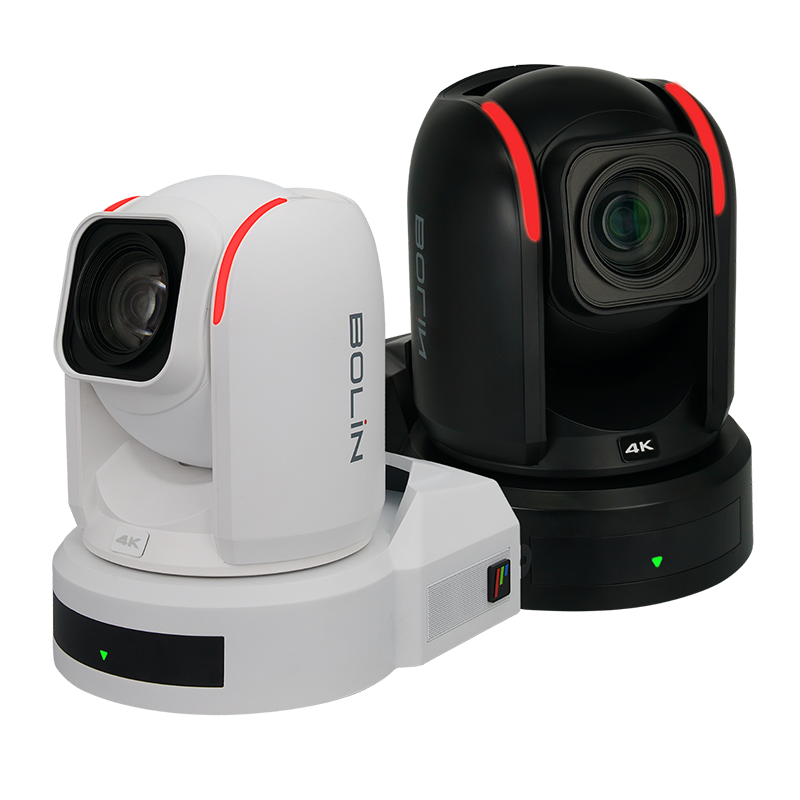

Bolin R9
Supported Controls
- Paint
- Filters : ND Filters
- White Balance1 : red gain, blue gain
- Black Balance : master black
- Matrix
- Multimatrix
- Gain : ISO, EV
- Shutter
- Color : Saturation, Hue
- Lens/PTZF
- Iris
- Pan/tilt : Status, Speed/Position Control
- Zoom/Focus : Status, Speed/Position Control
- PTZ Presets
note
Some of the other features of the camera will be availble in an upcoming software update. Among those features are the auto modes, record and tally.
Configuration
The camera can be configured using the Generic PTZ Guide
Bolin provides a discovery tool to help setup the camera. Make sure that the ip address of the camera is reachable by the RCP, see this page for more information about ip configuration.
Workflow
The Anxinshi joystick can provide a more convenient user interface than the RCP touchscreen for pan, tilt, zoom and presets.
The Elgato Stream Deck can be used to recall the PTZ presets.
