Scene Management

Scenes allows to Load/Save/Copy RCP painting settings.

The painting settings are stored in memory blocks identified by a number.

Each camera have 100 memory blocks numbered from 0 to 99.

Attention, the 0 memory block is used to reset the camera to factory settings.

These painting settings memory blocks are saved with the RCP configuration, see snapshots.

Save/Load a camera

To Load/Save a camera, the process is the same.

  • Select Load, select the active camera to load the configuration to, select the memory block to load from, press Apply.
  • Select Save, select the active camera that will be saved, select the memory block to save to, press Apply.

Note: Saving to an already used memory block will overwrite the preceding configuration.

  1. Press Save or Load.
  2. Use the Preview Button Group to select the active camera number.
  3. Select the memory slot with corresponding rotary encoder.
  4. Press Apply.

Copy camera settings

To copy the settings of a camera to an other, Load the painting settings of an origin camera and save it to a destination camera.

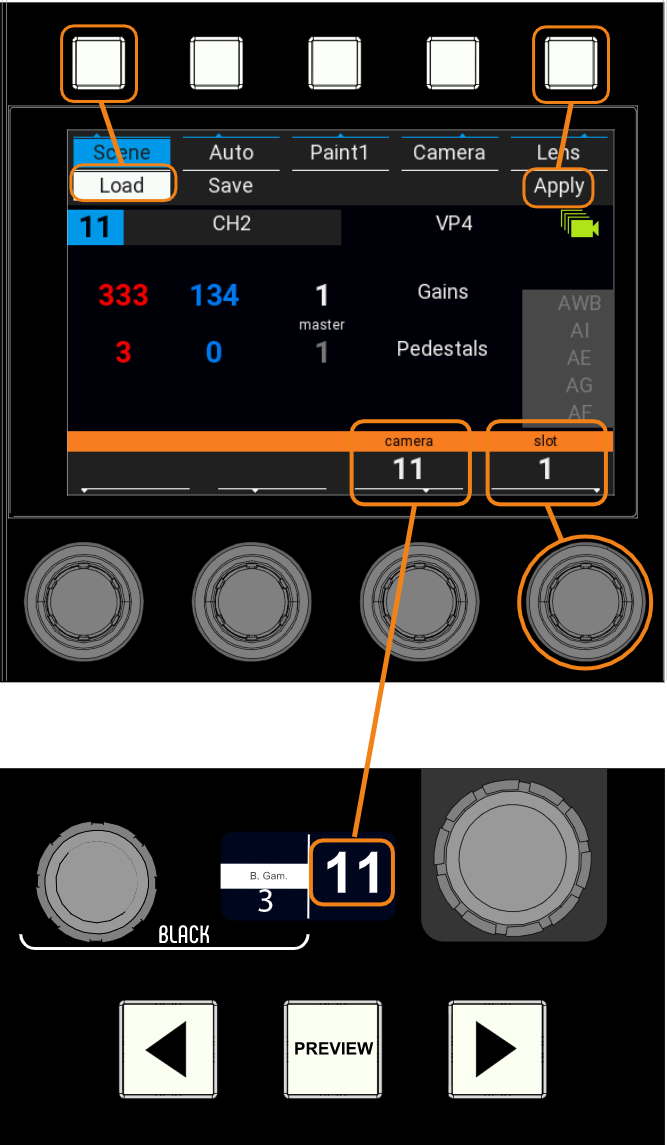

  1. Make destination camera the active camera of the RCP with Previous/Next buttons (ie: camera 02).
  2. Press Load.
  3. Select the origin camera (ie: camera 01) you want to load the settings from via corresponding rotary encoder.
  4. Select the memory slot of origin camera with corresponding rotary encoder.
  5. Press Apply.

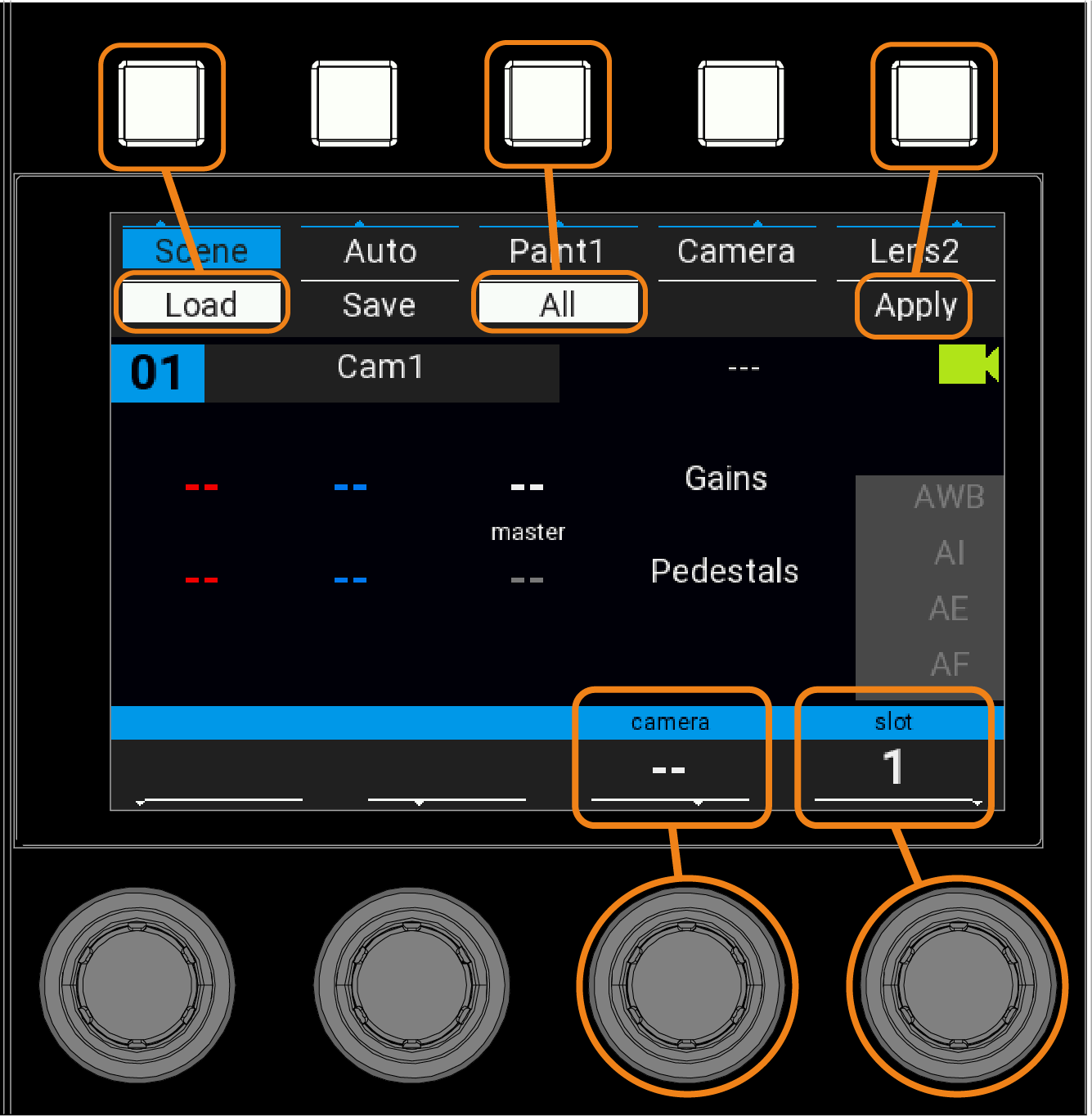

Save/Load All

Save/Load all configured camera painting settings.

To save/load all camera settings, first you have to select a group. The default "All" group allows to save / load all cameras.

  1. To select a group, press on the fourth encoder located under the screen.
  1. The group menu appears
  1. Select a group by pressing the button on the screen, and then go back with the "BACK" button

Saving / Loading all cameras is done the same way than a single camera (See Save/Load a camera).

Loading a scene file while in group mode allows two alternatives :

  • Load the slot n of each cameras
  • Load the slot n of a camera x to all cameras of the group
Load the slot n of each camerasLoad slot n of camera x to all camera of the group
Select camera "GRP" : In this case, the selected slot of each camera will be loadedSelect the camera number : In this case, the selected slot of camera 11 will be loaded to all cameras of the group
  1. Finally, to go back to camera mode, click again on the fourth encoder, and click on the selected group (orange button) to unselect it.
