Elgato Stream Deck

cyanview-support-RCP-Elgato-Stream-Deck

Overview#

cyanview-support-RCP-Elgato-Stream-Deck-Overview

Elgato Stream Deck functionalities:

  • Displays camera Statuses
  • Display camera tally statuses
  • Camera selection
  • Load/Save scenes
  • Load/Save positions

Configuration#

1 Connect the Stream Deck to the RCP USB port.

cyanview-support-RCP-Port-USB-PTZ-Joystick-Controller

2 Configure the Stream Deck in the Configuration page of the RCP Configuration Web UI.

3 Stream Deck is now associated with the RCP control.

Operation#

Stream Deck Menus#

cyanview-support-RCP-Elgato-Stream-Deck-Menu

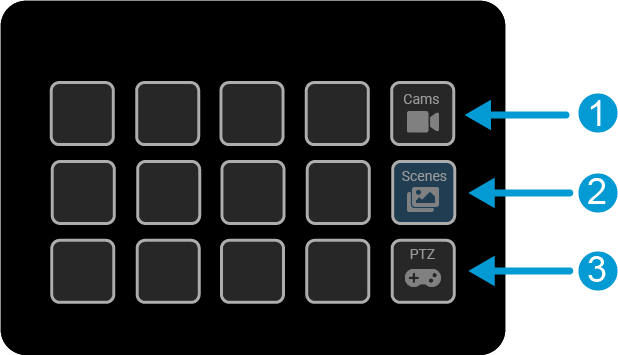

  • 1 Cams, camera statuses and selection.
  • 2 Scenes, Load/Save scenes.
  • 3 PTZ, Load/Save PTZ camera positions.

The blue highlight shows the active menu. Scenes in example above.

Cams Menu#

Stream deck Cams Menu offers a direct camera selection instead of the RCP's Previous/Next sequential selection buttons as well as an overview of all cameras status and tally.

cyanview-support-RCP-Elgato-Stream-Deck-Camera-Selection-Status
  • 1 Active camera (blue highlight).
  • 2 Camera Name.
  • 3 Camera Number.
  • 4 Camera Status.
  • 4 Camera Tally.

Scenes Menu#

cyanview-support-RCP-Elgato-Stream-Deck-Scenes-Menu

  • Direct selection of scene for the camera active on the RCP.

  • Save scene to the desired "scene x" button via long push.

PTZ Menu#

cyanview-support-RCP-Elgato-Stream-Deck-PTZ-Menu

  • Direct call of PTZ position and LENS settings for the camera active on the RCP.

  • Save PTZ position and LENS settings to the desired "PTZ x" button via long push.
